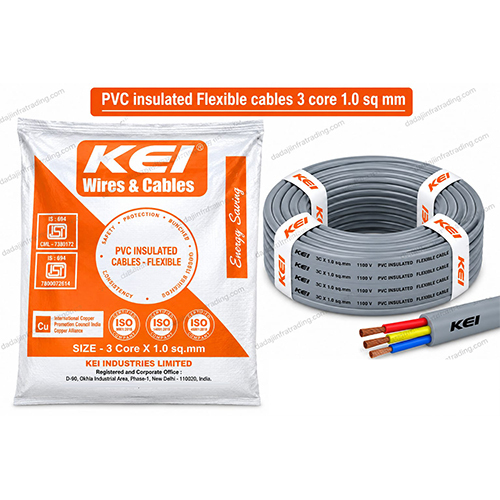

Single Core - Multicore Flexible Cables

Get a Price/Quote

Single Core - Multicore Flexible Cables Specification

Operating Temperature
-15C to +70C

Conductor Type
Stranded

Core Number
Single core, 2 core, 3 core, or customized

Tensile Strength
Min. 15 N/mm2

Weight
Varies with core count and length

Armored Material
Not armored (optional on request)

Dielectiric Strength
3 kV for 1 min

Diameter
Varies with size and core count

Rated Temperature
-15C to +70C

Install Type
Fixed and flexible installation

Core Material
Electrolytic grade copper

Conductor Shape
Round

Number of Conductor
Single core / Multicore (available in 2, 3, or more)

Impedance
Varies with core size

Insulation
PVC Type A

Cable Type
Flexible cable

Features
High flexibility, Improved insulation, Flame retardant, Easy installation

Usage & Applications
Indoor and outdoor wiring, Panels, Machinery, Home electrical

Product Type
Flexible electric cable

Length
Available in custom lengths, standard coils of 100 meters

Voltage
Up to 1100V

Insulation Material
PVC (Polyvinyl Chloride)

Application
Domestic wiring, Industrial panels, Internal wiring of devices, Power distribution

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-20C to +70C

Shield Material
No shielding (Unshielded)

Jacket Color
Black

Dimension (L*W*H)
Varies as per specification

Material
PVC insulated copper cable

Color
Black outer jacket, colored inner insulation (Red, Yellow, Blue, etc.)

Size
0.5 sqmm to 25 sqmm and above

Surface Finish
Smooth, glossy

Resistant To
Oil, Acids, Alkalis, Moisture

Conductor Standards
As per IS:8130/1984 or equivalent

Sheath Type
FR/FRLS/HR/HRFR on request

Standard
IS 694 / IEC 60227

Rated Current
Varies (based on core size, e.g., 10A to 100A)

Fire Performance
Flame retardant, self-extinguishing

Minimum Bending Radius
8 x overall diameter

Single Core - Multicore Flexible Cables Trade Information

Minimum Order Quantity
100 Meter

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

Single Core - Multicore Flexible Cables About

Take advantage of our Single Core - Multicore Flexible Cables-a paragon of electrical excellence favored by professionals. Designed to blue-ribbon standards like IS 694 / IEC 60227 and constructed from first-rate electrolytic grade copper, these cables deliver superior performance for both domestic and industrial needs. Benefit from favorable reviews on their flame retardant and self-extinguishing properties, oil and moisture resistance, and smooth, glossy finish. With a flexible installation process and a variety of core options, jump on this top-tier solution for reliable wiring and power distribution across India.

Outstanding Features & Applications of Flexible Cables

Our Single Core - Multicore Flexible Cables offer high flexibility, easy installation, and improved insulation, making them suitable for indoor and outdoor settings. These cables are ideal for domestic wiring, power panels, machinery, and the internal wiring of devices. Their flame retardant PVC insulation ensures safety, while the diverse range in sizes and configurations caters to specific usage requirements. With a minimum bending radius and superior tensile strength, these cables are designed for both fixed and flexible installations.

Payment, Packaging, and Export Logistics for Flexible Cables

We offer seamless payment terms that simplify your procurement experience. Packaging details are meticulously handled, ensuring safe exchange and logistics, with coils available in custom lengths or standard 100-meter packs. Our cables are distributed, supplied, and traded with reliable logistics networks across India and for main export markets. We provide prompt delivery to ensure your projects stay on track, accompanied by thorough documentation for exchange or international shipping requirements.

FAQ's of Single Core - Multicore Flexible Cables:

Q: How do I select the right Single Core - Multicore Flexible Cable for my project?

A: Determine the current rating, number of cores, and application type (fixed or flexible installation) required. Consult our technical team or refer to standards IS 694 / IEC 60227 for precise guidance.

Q: What is the benefit of flame retardant and self-extinguishing properties?

A: Flame retardant and self-extinguishing cables minimize the risk of fire spread, enhancing safety in homes, industries, and commercial installations, and ensuring compliance with critical safety standards.

Q: Where can these flexible cables be used?

A: These cables are suitable for domestic wiring, industrial panels, internal wiring of devices, power distribution in machinery, and both indoor and outdoor installations.

Q: What packaging options do you offer for these cables?

A: We provide packaging in standard coils of 100 meters or custom lengths as per your project specification, ensuring secure logistics and easy handling during transit and exchange.

Q: What is the process for exchanging or exporting flexible cables?

A: For exchange, contact our customer support with your order details. For exports, we comply with all international documentation, logistics, and packaging requirements to ensure a hassle-free shipping experience.
